Uneven rooms? You can tune comfort by adjusting manual balancing dampers on the main ducts. Below is a safe, step-by-step way to balance rooms without stressing the system.
Contents
show

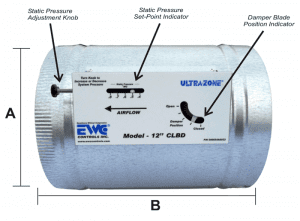

What a Manual Duct Damper Does and Where to Find It
Manual dampers are small plates inside the round or rectangular branches off your supply trunk. A lever on the outside shows position: in line with the duct = more open. Across the duct = more closed. They’re usually in basements, attics, or crawlspaces near where branches split. Used correctly, they steer more air to rooms that run hot or cold. Seasonal adjustments are common in many residential HVAC setups.
Before You Start: Safety, Access, and Baseline Settings
Give yourself safe access (stable footing, good lighting). Mark today’s lever position with a pen so you can return to it. Open all room registers and make sure filters are clean. If a room has doors that are often closed, note that return paths matter for airflow and pressure. Poor return paths and closed registers can raise static pressure and cause comfort or equipment issues.
How to Adjust a Manual Damper (Step by Step)
Start with small moves and test after each change. Big moves can throw off other rooms.
- Pick one “problem” room. Note its temp vs. nearby rooms (use a simple thermometer).
- Locate the branch damper feeding that room (handle on the take-off or round branch).
- For a warm room in summer (needs more cool air): turn the handle a little more in line with the duct.
- For a cool room in summer (needs less): turn the handle a little more across the duct.
- Change by ~15°, wait 15–30 minutes, and re-check that room and a couple of others.
- Label positions (e.g., BR2 “summer 30° open”). Keep your baseline mark in case you need to roll back.
Tip: never slam a branch fully shut. Excessive restriction can raise total external static pressure, add noise, and strain components.
Seasonal Damper Settings (Winter vs. Summer)
Because heat rises and sun exposure shifts, you may open some upstairs branches a bit more in summer and close them slightly in winter, with the reverse for downstairs. Keep a simple note on the duct or in your phone so you can repeat the setting each season. Seasonal damper tweaks are common when balancing airflow between floors.
When Not to Close Registers or Dampers Fully
Closing too many supply paths raises static pressure. That can mean blower strain, coil freeze in cooling, or limit trips in heating. If you’re tempted to shut a branch entirely, stop and check basics: filters, coil cleanliness, return paths, and duct leaks. For pressure-related comfort issues, a pro should measure TESP (total external static pressure) before any aggressive balancing.
Closing too many supply paths raises static pressure and can strain components. For a plain-English explainer, see this static pressure basics guide.
Troubleshooting If Adjustments Don’t Work
Sometimes the issue isn’t balance. It’s air loss. Common causes: dirty blower/coil, crushed flex, or leaks at joints.
- Dirty blower or coil can choke airflow even with dampers wide open. Consider a furnace & blower service to restore flow.
- Leaky ductwork wastes air before it reaches rooms. Duct sealing helps improve airflow with sealing.
- System-level dust can resettle in branches and registers. If buildup is heavy, see our professional duct system cleaning to reset the system.
Room-Balancing Quick Reference Table
Small moves, test, then label your final settings.
What this table does: It maps a common symptom to the likely branch and the kind of adjustment to try first. Re-check two nearby rooms after each change so you don’t solve one room and create another.
| Symptom (cooling season) | Damper to adjust | First move | Re-check |
|---|---|---|---|
| Bedroom too warm | Branch to that room | Open ~15° more (handle closer in line) | Bedroom + hallway |
| Downstairs chilly | Upstairs branches | Close upstairs ~10–15° | 1 upstairs room + 1 downstairs |
| Big temp swing across day | West-facing rooms | Open those branches 10–15° | Late afternoon temp |
| Noisy airflow at a vent | That branch + nearby | Slightly close branch 10°. Confirm others are not fully closed. | Noise + comfort |
If several branches are nearly closed just to satisfy one room, stop and get static pressure tested. Register control alone isn’t a safe long-term fix.
Damper Adjustment FAQs
These answers explain where manual dampers are located, how to adjust them safely, and when airflow problems may need professional testing instead of more damper changes.
Where are duct dampers usually located?
Manual duct dampers are usually located on round or rectangular branch ducts near the main supply trunk. Look for a small handle or lever on the outside of the duct. In many homes, dampers are found in attics, basements, crawlspaces, or mechanical rooms near where the duct branches split.
Which way should the damper handle point to be open?
In most manual damper setups, the handle in line with the duct means the damper is more open. A handle turned across the duct usually means the damper is more closed. Some systems are labeled or notched differently, so mark the starting position before making small adjustments.
Is it safe to close supply dampers completely?
It is usually better not to close supply dampers completely. Closing too many branches can raise static pressure, increase airflow noise, reduce comfort in other rooms, and strain HVAC components. Make small adjustments, test the rooms again, and avoid using damper control as a fix for major airflow problems.
Do apartments or condos usually have duct dampers?
Some apartments and condos do not have accessible manual dampers, especially when ductwork is shared, concealed, or controlled by building management. You may be able to adjust room registers lightly, but avoid changing anything beyond your unit without checking with the property manager or building maintenance team.
Do I need different damper settings for winter and summer?
Many homes benefit from small seasonal damper adjustments. For example, upstairs rooms may need a little more airflow in summer, while downstairs rooms may need more help in winter. Make small changes, label your summer and winter positions, and check nearby rooms after every adjustment.
When should I stop adjusting dampers and call a professional?
Stop adjusting dampers and call a professional if several branches need to be nearly closed, rooms still will not balance, airflow gets noisy, ducts sweat, or comfort gets worse after small changes. These signs can point to high static pressure, duct leaks, a dirty blower or coil, crushed ductwork, or return-air problems that need proper testing.
When to Call a Professional
If rooms won’t balance after small moves, if you hear new noise, or if you see sweating ducts, call in testing. A tech can measure static pressure, inspect the blower wheel and coil, and confirm safe damper settings before more adjustments are made.
